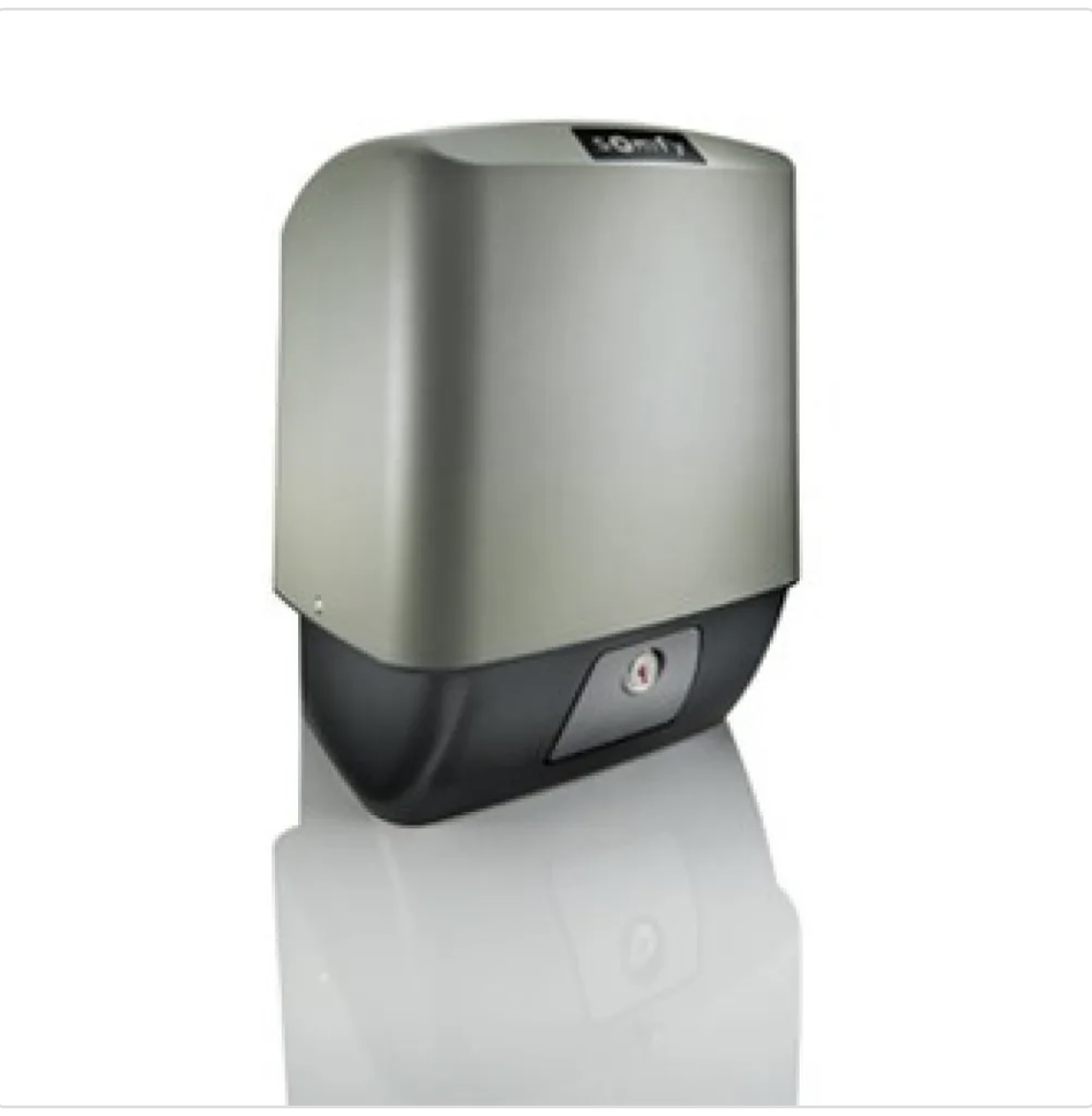

Elixo Motorization For Sliding Gate 2000 KG

Item Specifics

• Area lighting 230 Vac - 100 W max 230 Vac - 100 W max. - Area lighting time: fixed 90 seconds
• Door TypeSliding gate
• Impact force Electronic detection adjustable
• Max number of operation per day Gear reduction ratio
• Maximum weight of the gate 2000 Kg
• Motor power supply 220 V / 230 V - 50 / 60 Hz
• Number of cycles Max per day: 100 - Heating protection: 150° CMax consecutive: 12 cycles for 7m course & 6 cycles for 10 m course
• Operating temperature 54IP
• Slowing zone Adjustable gate travel - Adjustable impact force
• Speed 10 m/min

Product Description

Feature :

Solid, accurate and secure installation of the largest cloud gates

The rigidity of the gate is up to 2000 kg in homes or shops.

Adjustable shock force

Self-programmable system

Adjustment of impact strength and slow stages

It is equipped with a built-in encoder for the gate mode to set the gate's path accurately and slow stages
